MIL-M-81392 Marker, Location, Marine Mk 25 And Mods 2 And 3This specification covers the manufacture, assembly, preparation for delivery of the Marker, Location, Marine MK 25 and Mods 2 and 3, and the methods of examination and tests upon which product acceptance shall be based. The marker consists of an aluminum body containing a pyrotechnic composition which produces a yellow flame and white smoke when electrically initiated by Mk 13 Mod O Electric Squib which is activated by a Mk 72 Mod 1 Water Activated Battery. The base of the marker contains a safe-arm feature that seals the battery cavity. The marker is classified as Class B Explosives \( Code of Federal Regulations 49 CFR 71-78\) and IIC Explosives \(Coast Ward Rules and Regulations for Military Explosives and Hazardous Munitions CG 1.08\).

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17

MIL-M-81392(AS)

number for any category, the preparation for delivery of the lot of markers

represented still be rejected. Only packs meeting the acceptance criteria

of Table III may be returned to the lot.

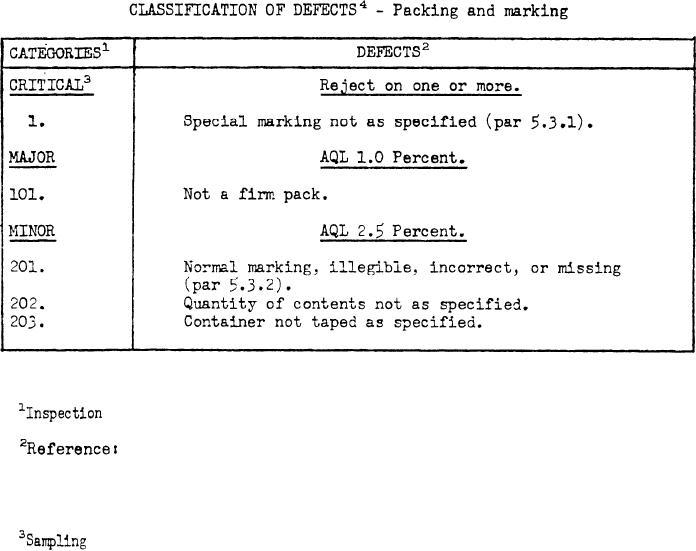

NOTES:

shall be in accordance with Standard MIL-STD-105.

BUWEPS LD 615123, BUWEPS Dwg. 1332115 for the Marker,

Location, Marine, Mk 25 Mod 2 or BUWEPS ID 615153, BUWEPS

Dwg. 1332144 for the Marker, Location, Marine, Mk 25 Mod 3

as applicable.

for Critical shall be as follows:

(a) Single sampling shall be used (double or multiple sampling and

reduced inspection are prohibited).

(1) For inspection lot sizes of 200 or less, use 100 percent of

the lot,

(2) For inspection lot sizes of 201 to 3200, use 200 units,

(3) For inspection lot sizes greater than 3200, use the sample size

from Table II indicated by the sample size letter from Level III

of Table I.

1n the absence of previous inspection on the shipping container, prior

to use, inspection shall be performd as required by BUWEPS Dwg. 1332114.
